GUTA GT60 TPMS Tire Pressure Monitoring System

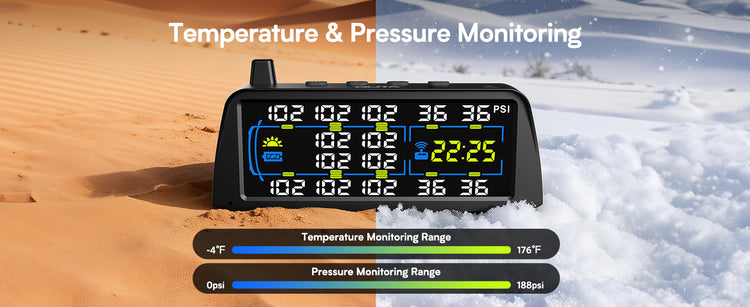

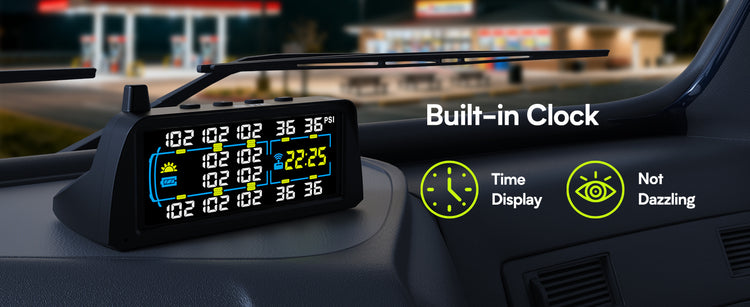

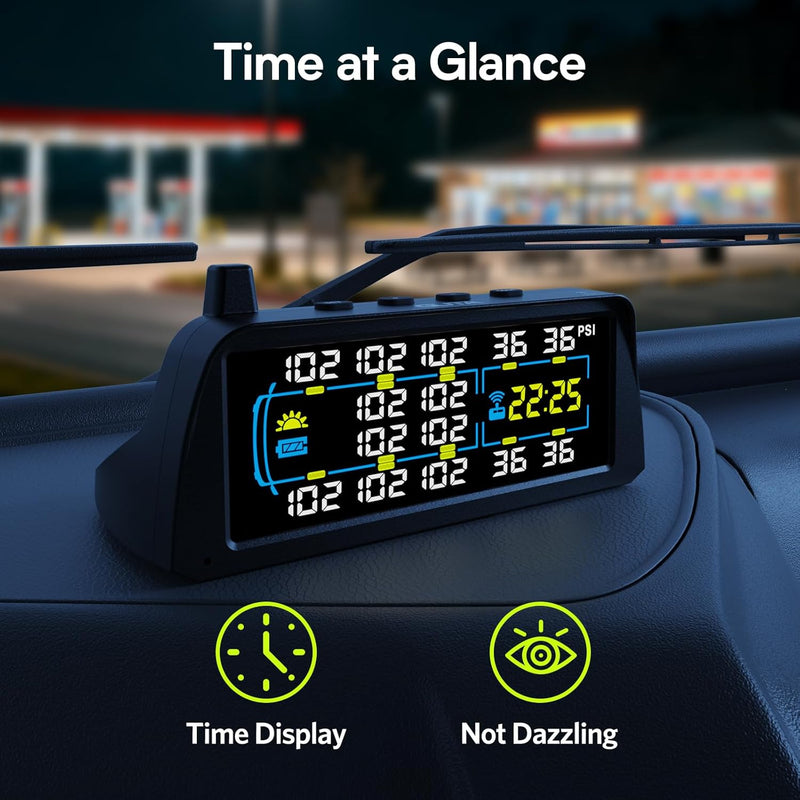

• Full-Color Display & Real-Time Monitoring

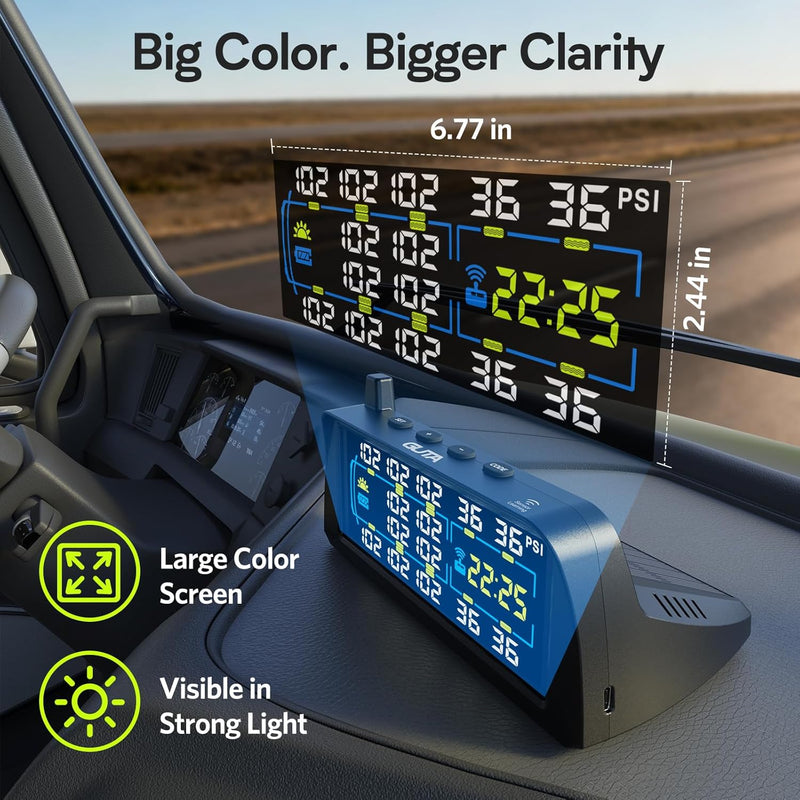

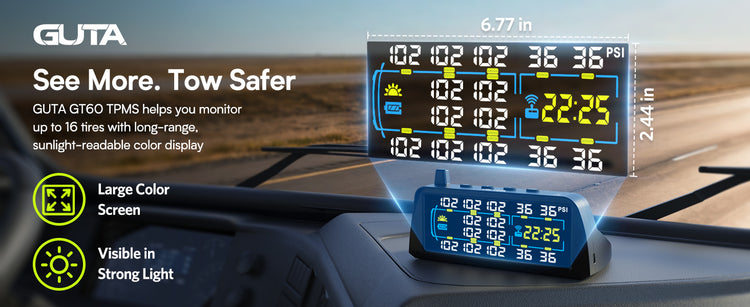

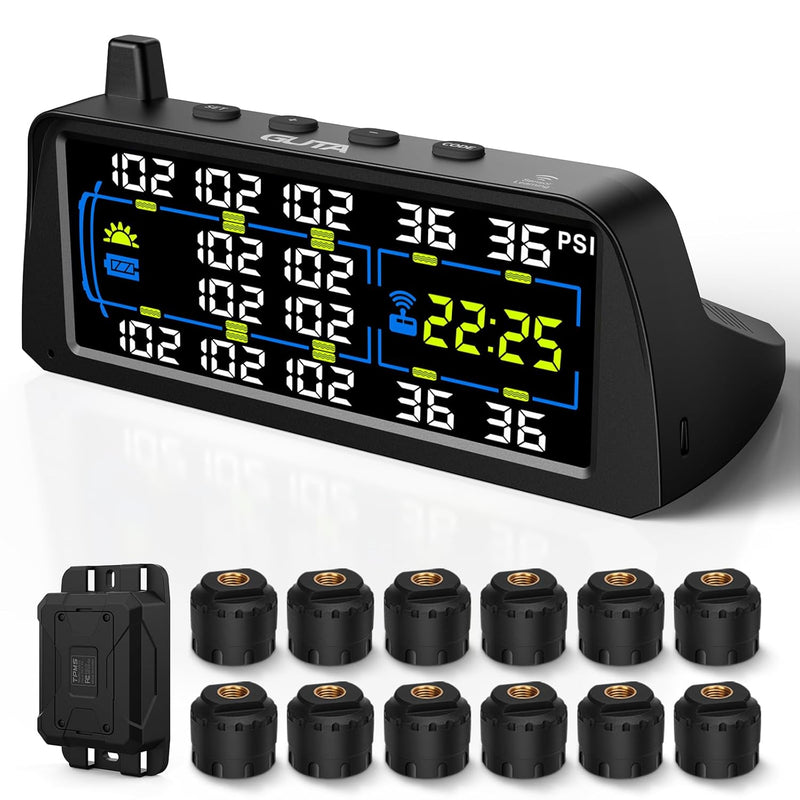

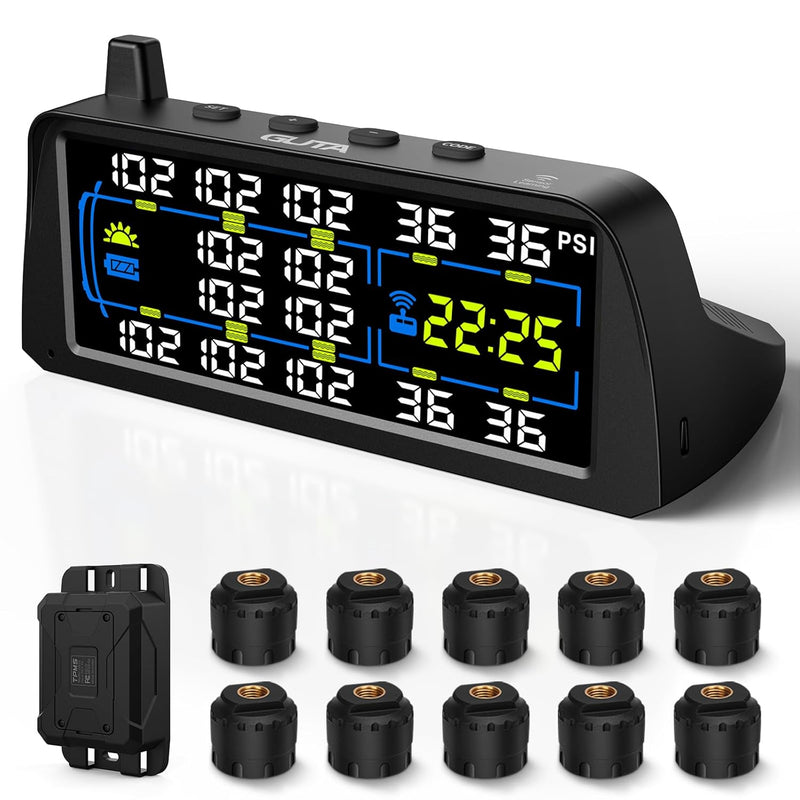

  The GUTA GT60 TPMS features a 7-inch full-color LCD for real-time pressure (0-188 PSI) and temperature monitoring of up to 16 tires. The display auto-adjusts brightness for optimal day and night visibility, enhancing safety for motorhomes, trucks, and commercial fleets.

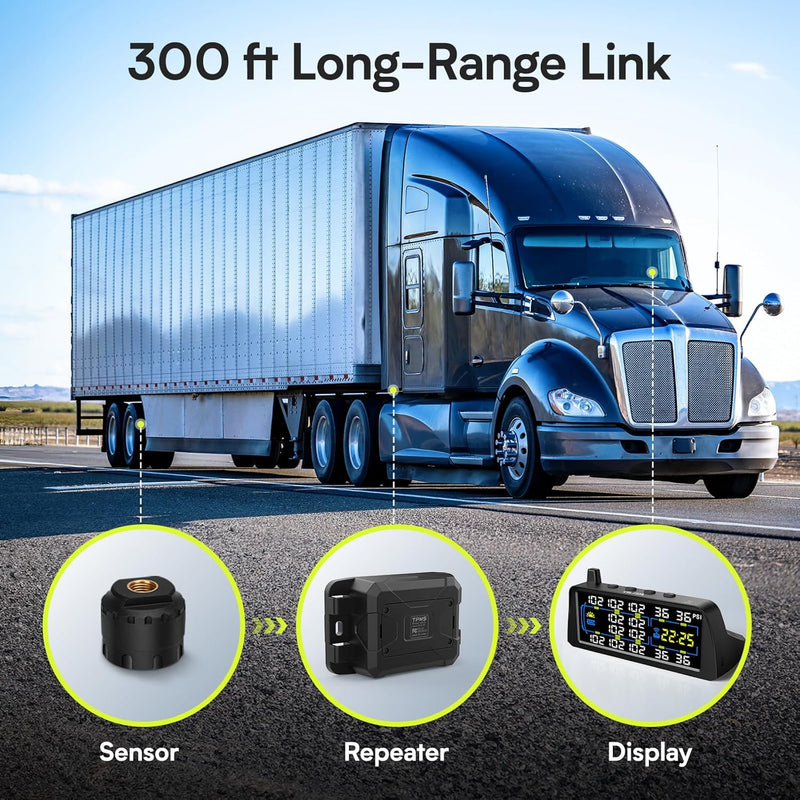

• Long-Distance Signal & Repeater Support

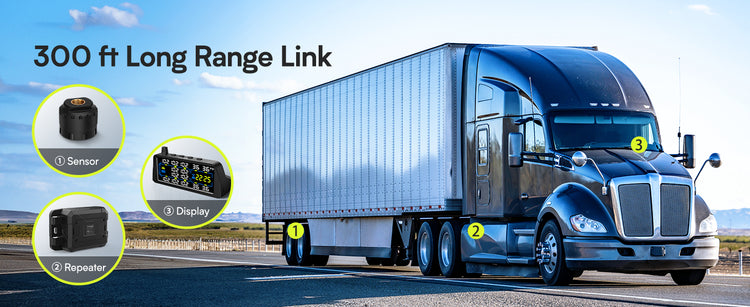

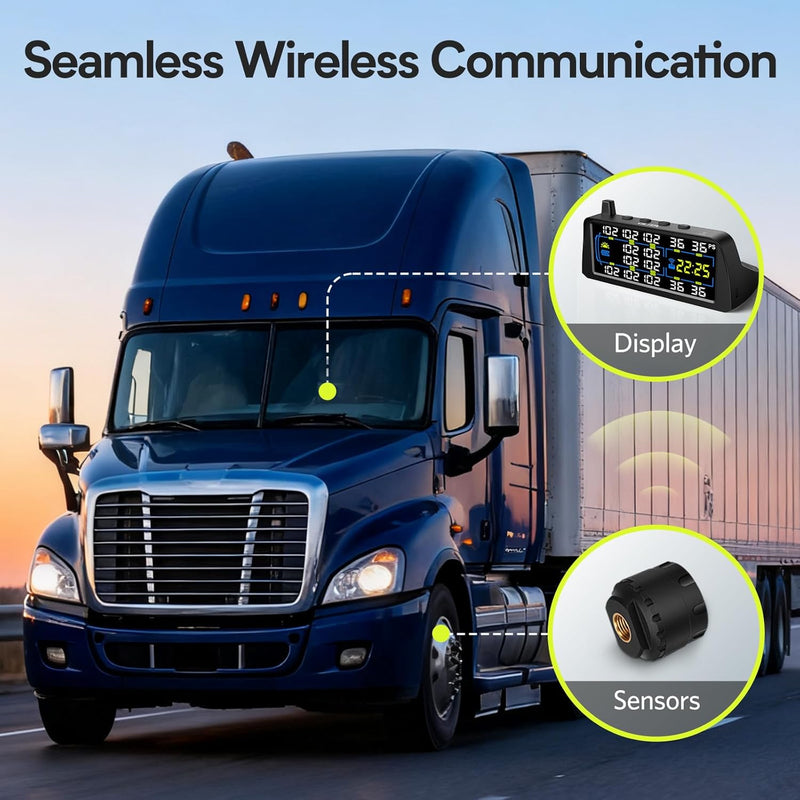

  The system delivers an ultra-long wireless transmission distance of 90-100m. An included repeater can be installed to enhance signal stability for extended rigs and complex vehicle configurations, ensuring reliable monitoring on long journeys.

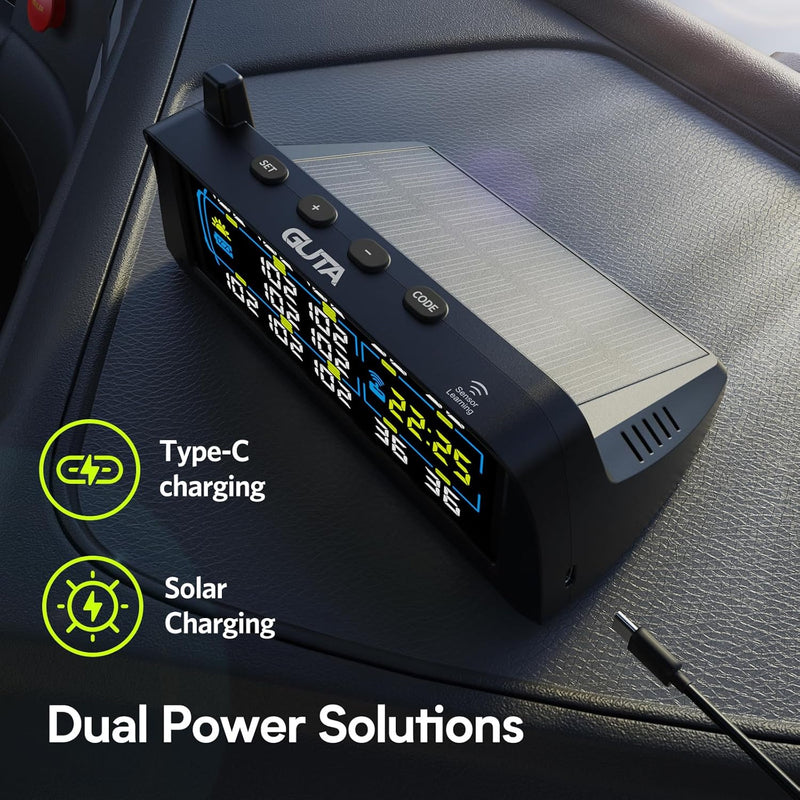

• Versatile Charging & Extended Battery

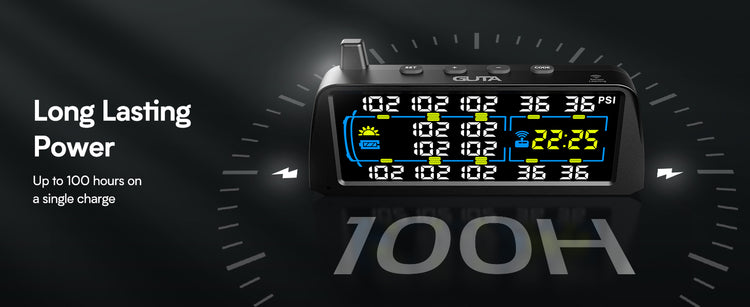

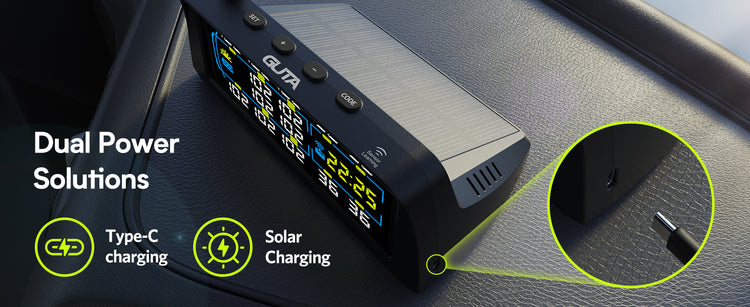

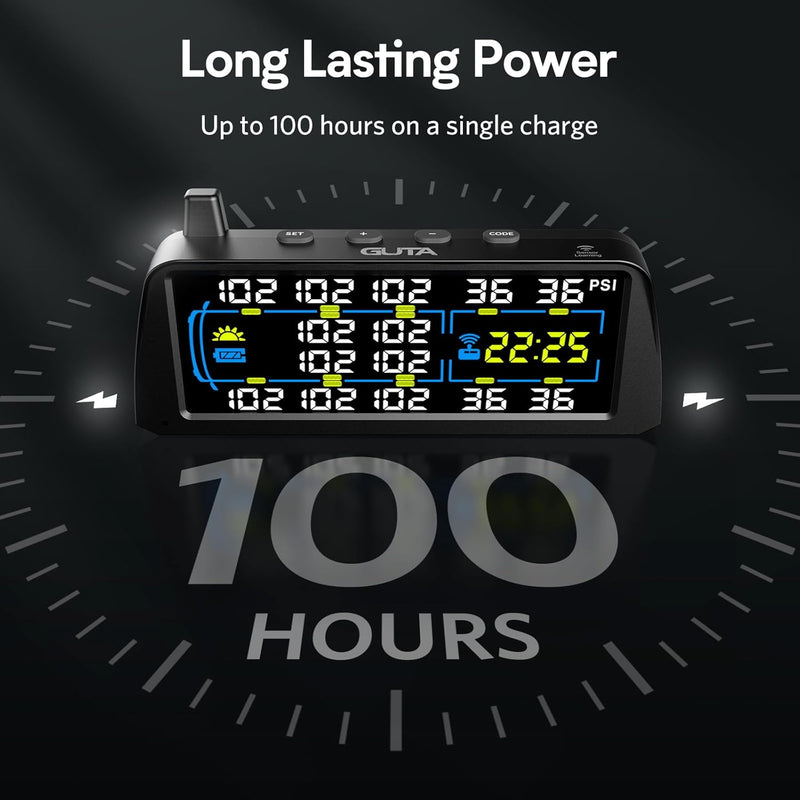

  Powered by a large solar panel and USB-C charging, it ensures continuous operation. The built-in rechargeable battery provides up to 100 hours of power, offering reliable performance even in low-sunlight conditions.
• 6 Alarm Modes & Smart Setup
  Features 6 alarm modes, including fast leak, high/low pressure, high temperature, sensor battery, and signal loss alerts. The system auto-sets reference pressure upon pairing, with alarm thresholds easily adjustable from +25% to -15% PSI.

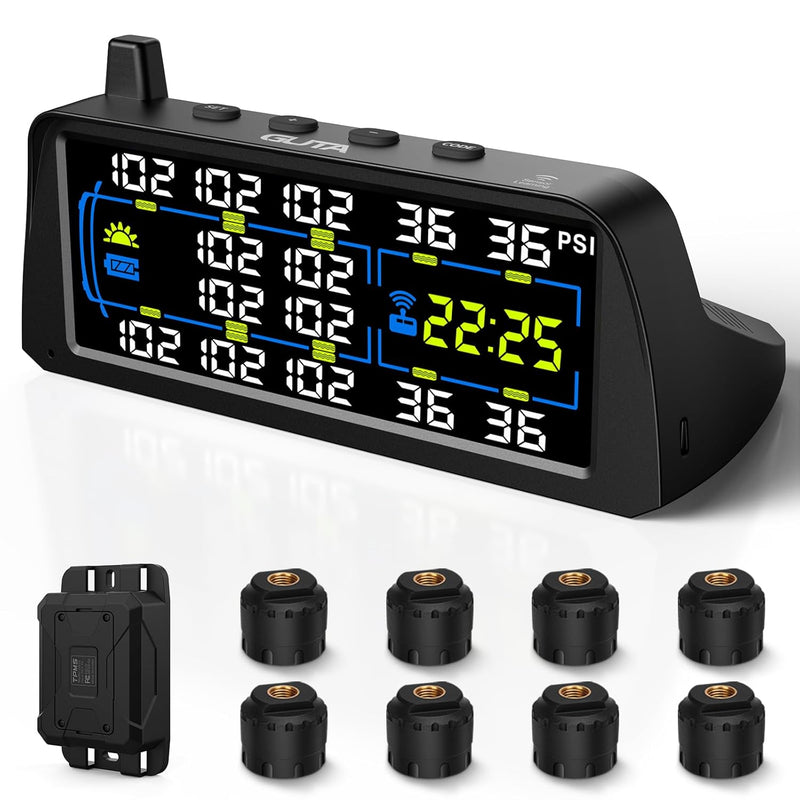

• Pre-Paired Sensors & Durable Design

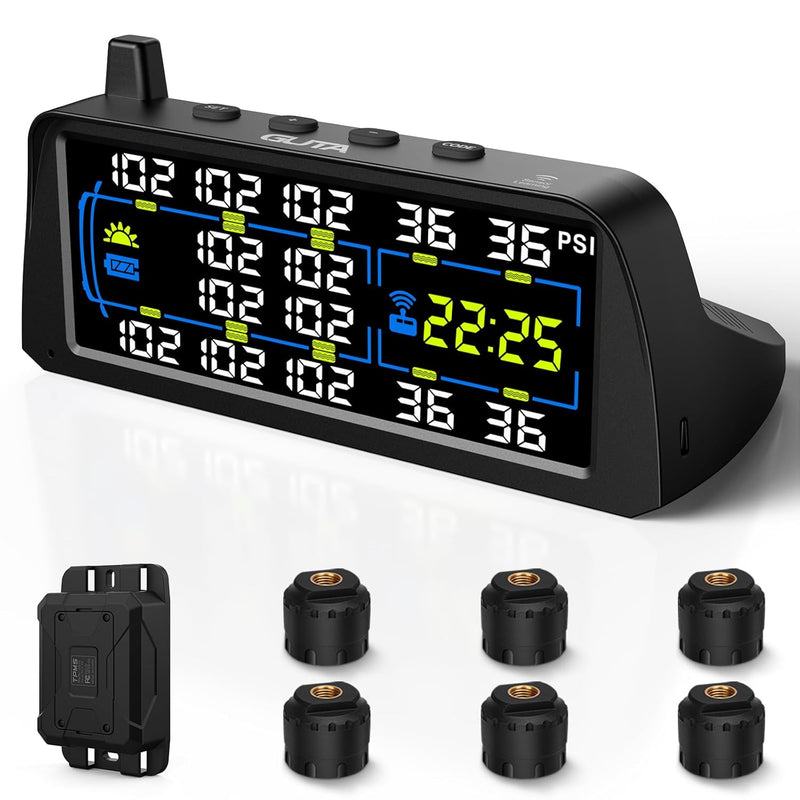

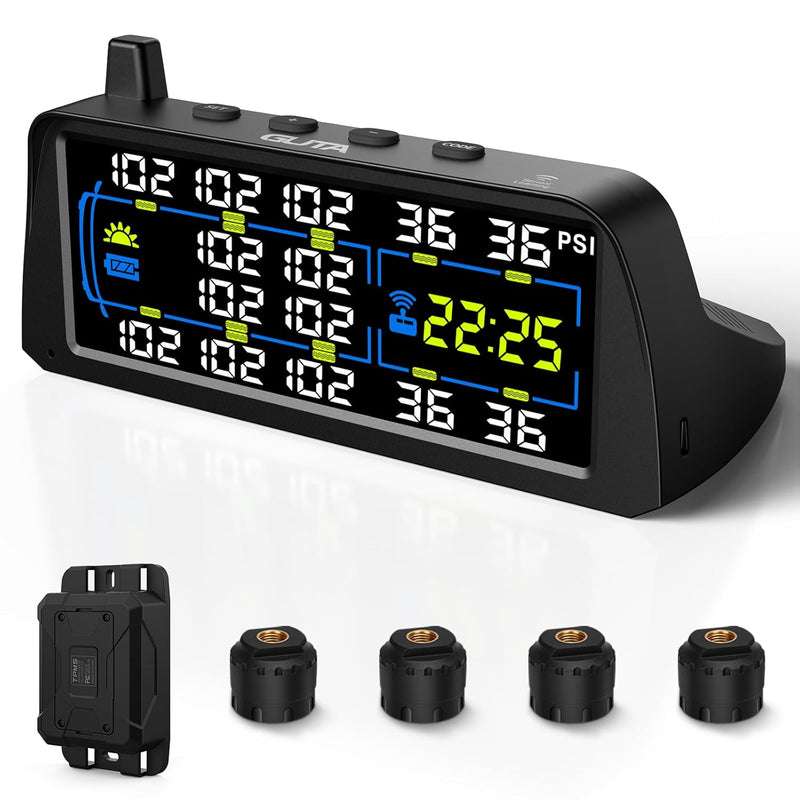

  All sensors are pre-labeled and factory-paired with the monitor for immediate use—no manual pairing required. Settings allow easy unit switching. Each sensor is waterproof, dustproof, and features anti-theft protection for reliable performance in any weather.

Model: GT60
Item Dimensions(LxWxH): 8.42 x 4.72 x 3.82 inches
Weight: 2.36 Pounds
Input Voltage: 5~24V
Frequency: 433.92MHZ

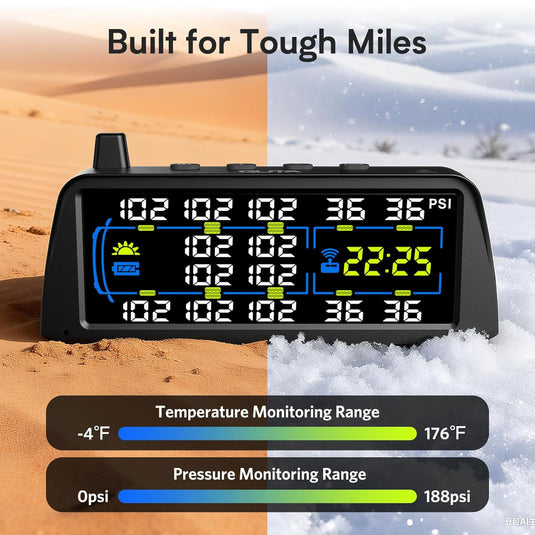

Pressure Range: 0~188 PSI(0~13 BAR)
High Temperature Alert: >158°F (>70°C)

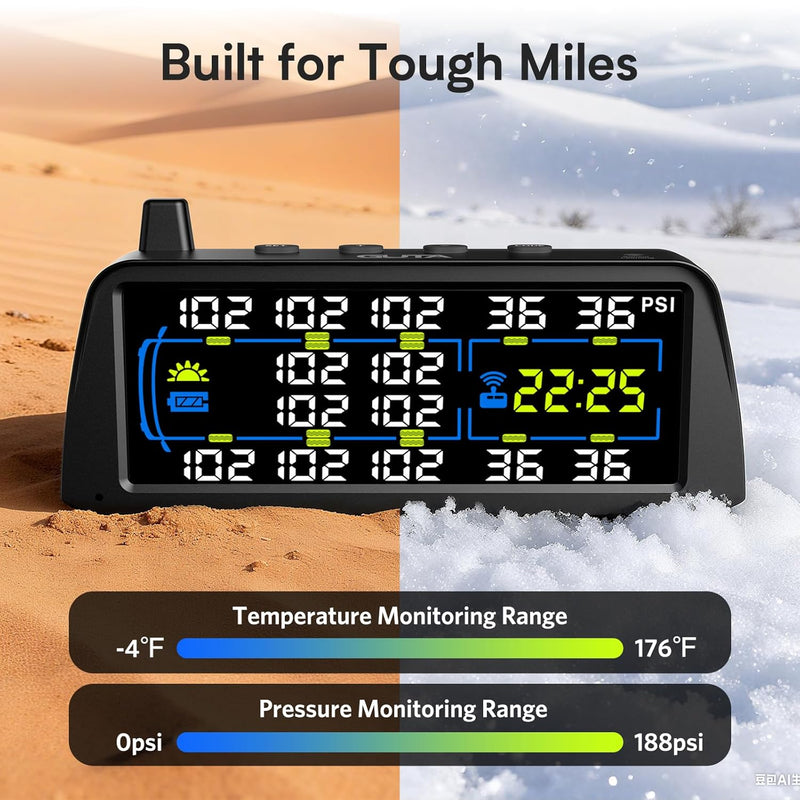

WorkingTemperature: -4°F~176°F (-20°C~80°C)
Storage Temperature: -4°F~185°F(-20°C~85°C)

1. Entering Programming Mode:
- To enter Learning Mode, press and hold the CODE button on the monitor until you hear a beep, then release. Releasing too early will prevent entry into Learning Mode.
2. Why No Data Displays When Stationary:
- The monitor may enter power-saving mode after being stationary. Press any button or create vibration to wake it.
- If sensor data is still missing, the repeater may not be powered. The repeater relies on the vehicle’s battery, so restart the vehicle to reactivate the repeater.
3. Limitations of Puncture Prevention:
- The TPMS cannot prevent punctures caused by sharp objects or tire damage. It monitors gradual changes in pressure and temperature but cannot detect sudden events. Regular tire inspections are essential, and faulty tires should be replaced promptly.
Friendly Reminder: Conduct a full tire inspection at least once a month with a professional technician for optimal safety.
