How to Choose a Tire Pressure Monitoring System for an RV or Travel Trailer
An RV or travel trailer tire pressure monitoring system should do more than show a number on a screen. For a towable rig, fifth wheel, motorhome, or long trailer, the right TPMS has to match your tire count, tire pressure range, vehicle length, sensor preference, and the way you actually travel.
Choosing an RV TPMS starts with your tire count, trailer length, pressure range, sensor style, alerts, display, and maintenance preferences. Use this guide to match the right system to your rig.
What an RV TPMS does
A tire pressure monitoring system tracks tire pressure and, on many direct TPMS systems, tire temperature. Instead of waiting for a visual inspection at a fuel stop, you can monitor tire conditions while driving and receive alerts when readings move outside your set range.
That matters for RVs and travel trailers because the tires are often behind you, loaded for long trips, and harder to notice from the driver's seat. A TPMS is not a replacement for regular tire inspections, and it cannot prevent every puncture or tire failure. It is a monitoring tool that helps you catch pressure and temperature changes earlier.
1. Count every tire you need to monitor
Start with the full tire count, not just the tow vehicle. For a travel trailer, include every trailer tire. For a fifth wheel or motorhome, include the tires on the coach and any additional trailer or towed vehicle setup you want to watch.
- Smaller trailers may only need a 4-sensor setup.
- Larger travel trailers and fifth wheels may need 6, 8, 10, or more sensors.
- Motorhomes, long rigs, and multi-axle setups should choose a system with room to grow.
2. Match the system to your pressure range
Do not choose a TPMS until you know your recommended cold tire pressure. You can usually find this on the tire sidewall, the RV placard, the trailer documentation, or the owner's manual.
For RV and trailer use, make sure the monitor and sensors support the pressure range your tires require. Several GUTA RV TPMS models list a pressure range of 0-188 PSI, which covers many RV, trailer, truck, and commercial tire applications.
3. Choose the right sensor style
Most aftermarket RV TPMS systems use external sensors. Cap sensors are compact and simple to install. Flow-through sensors let you add air without removing the sensor, which can be useful when you adjust pressure often or want easier maintenance during long trips.
4. Check signal range for long trailers
Signal range is one of the biggest differences between an ordinary TPMS and a system that works well for RVs. A long travel trailer, fifth wheel, or motorhome creates more distance between the sensors and the monitor. Metal, cargo, and vehicle layout can also affect signal stability.
Look for systems designed for long vehicles and confirm whether a signal booster or repeater is included, optional, or not needed for your setup.
5. Decide how much display you want
The best display is the one you can read quickly without fuss. Some owners prefer a simple gray-screen monitor. Others prefer a color display or touchscreen because pressure and temperature readings are easier to scan.
Compare GUTA RV TPMS models
Use this table as a starting point, then confirm the final model page before purchase because kits, sensor counts, and accessories can vary.

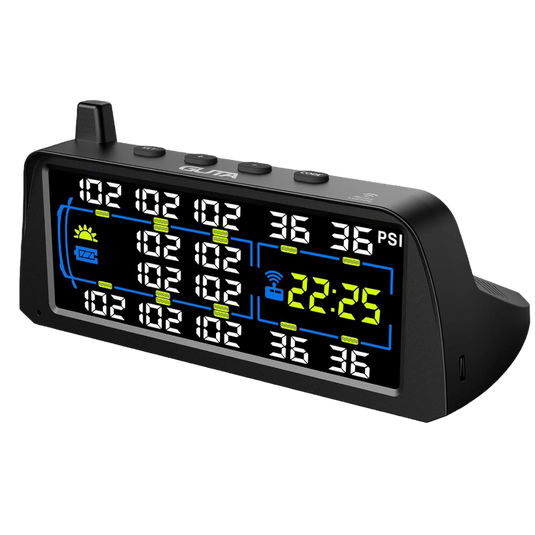

GUTA GT60
Best for RV owners who want a large color display, pressure and temperature alerts, and included repeater support for longer rigs.
- Tire support: Up to 16 tires
- Display: 7-inch full-color LCD
- Signal notes: Designed for long-distance wireless transmission; repeater support is listed for extended setups.
- Power: Solar and USB-C charging; built-in rechargeable battery listed up to 100 hours.
GUTA GT80
Best for RV and trailer owners who prefer touchscreen operation and flexible sensor choices.
- Tire support: Up to 22 tires
- Display: Full-color touchscreen
- Sensor notes: GS02 cap sensor and GS03 flow-through sensor options; optional booster range listed up to 164 feet.
- Maintenance: User-replaceable CR2032 sensor batteries are listed in product information.
GUTA GT30
Best for larger RV, trailer, truck, or multi-axle setups that need higher tire-count monitoring.
- Tire support: Up to 34 tires
- Display: Displays up to 10 tires per screen
- Alert notes: Supports high/low pressure, high temperature, fast leak, and low battery alerts.
- Maintenance: Replaceable CR2032 sensor batteries listed up to 4 years under stated use conditions.
Quick TPMS buying checklist
- Total number of tires to monitor
- Recommended cold tire pressure
- Maximum pressure range needed
- Trailer or motorhome length
- Preferred sensor type
- Display preference
- Required alert types
- Whether you need a booster or repeater
FAQ
Is an RV tire pressure monitoring system necessary?
An RV TPMS is not a legal requirement for every owner, but it is a useful monitoring tool for RVs, fifth wheels, and travel trailers. It should be used together with regular tire inspections, not instead of them.
How many TPMS sensors do I need for a travel trailer?
You need one sensor for each tire you want to monitor. A single-axle trailer usually needs two sensors, a dual-axle trailer usually needs four, and larger fifth wheels, motorhomes, or towed-vehicle setups may need more.
When do I need a TPMS repeater or signal booster?
A repeater or booster is most useful for long trailers, fifth wheels, motorhomes, or setups where the monitor is far from the rear sensors.
Are cap sensors or flow-through sensors better for RVs?
Cap sensors are compact and easy to install. Flow-through sensors are more convenient when you add air often because you can inflate the tire without removing the sensor.
Can a TPMS replace manual tire checks?
No. A TPMS helps monitor pressure and temperature changes, but it cannot prevent punctures, repair damaged tires, or replace routine inspections.
Final recommendation
If you own an RV or travel trailer, choose a TPMS that matches your actual driving setup: tire count, pressure range, trailer length, display readability, sensor maintenance, and alert coverage.
